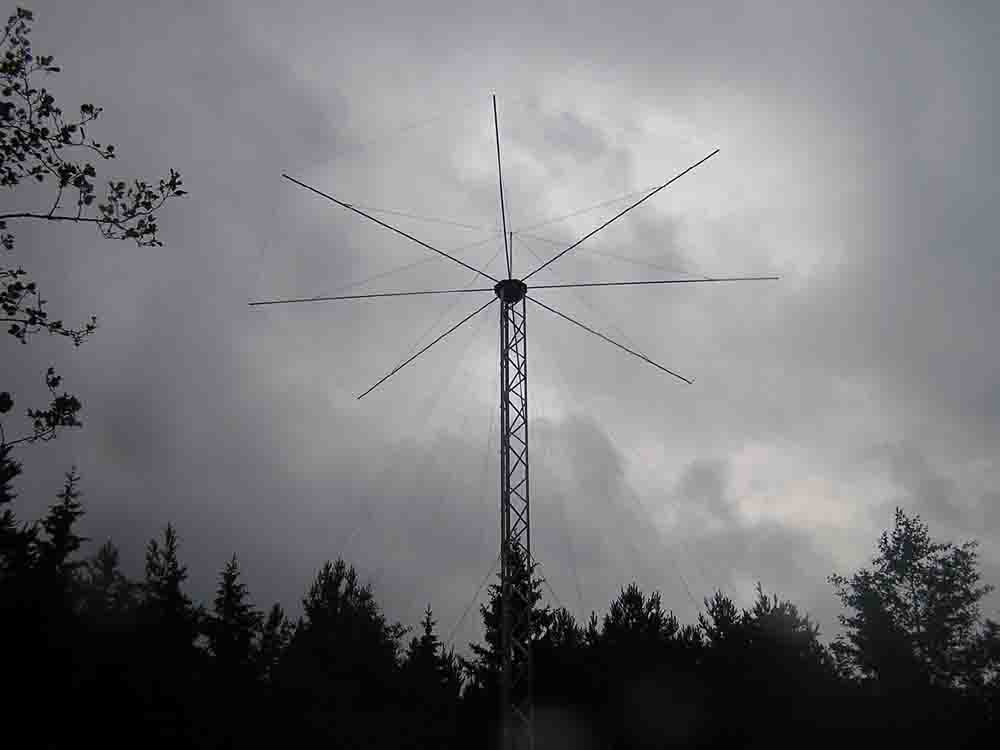

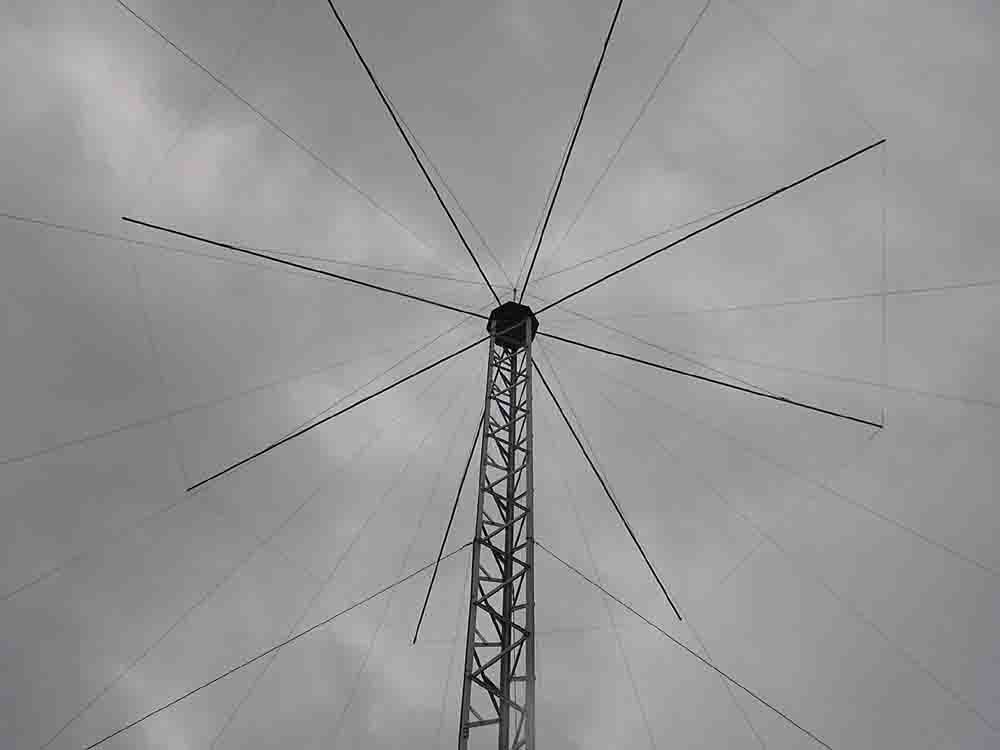

Discone 6-30 MHz

The discone is an omni-directional vertical polarized antenna.

The elevation angles are low, but will increase in the upper end of the frequency range.

The antenna covers the complete
6-30 MHz spectrum.

VSWR: < 1,5:1
Disc diameter: 800 cm
Height: 1200 cm
Weight: 85 kg
Power handling > 5000 W

Specifications are subject to change
